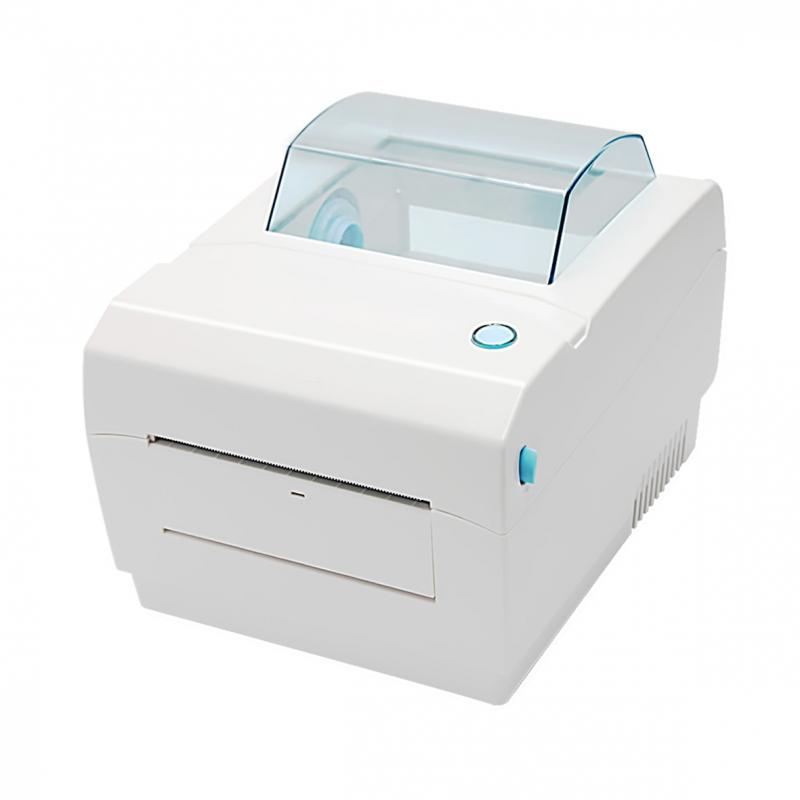

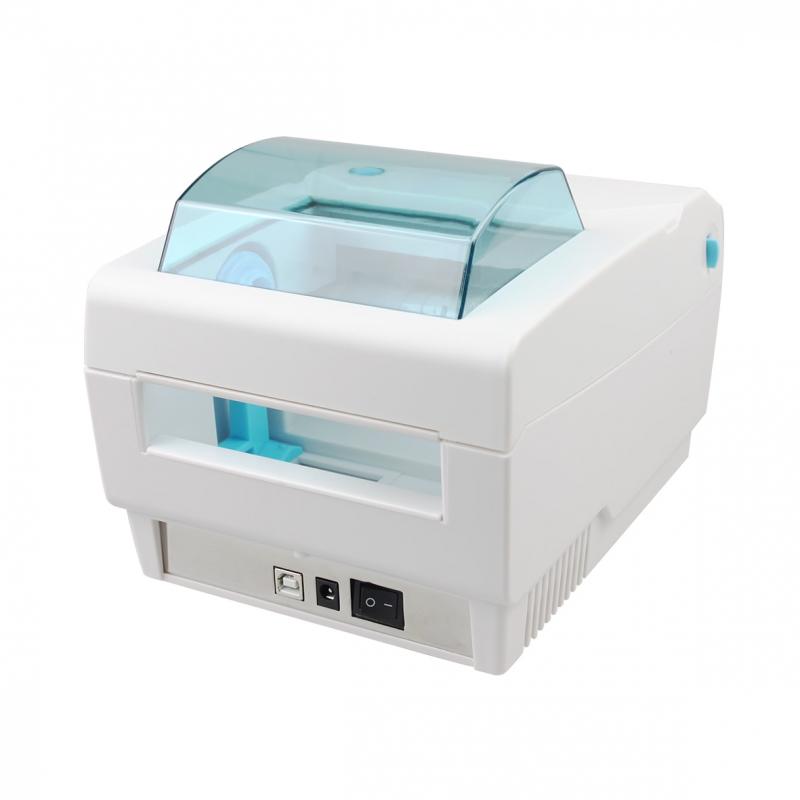

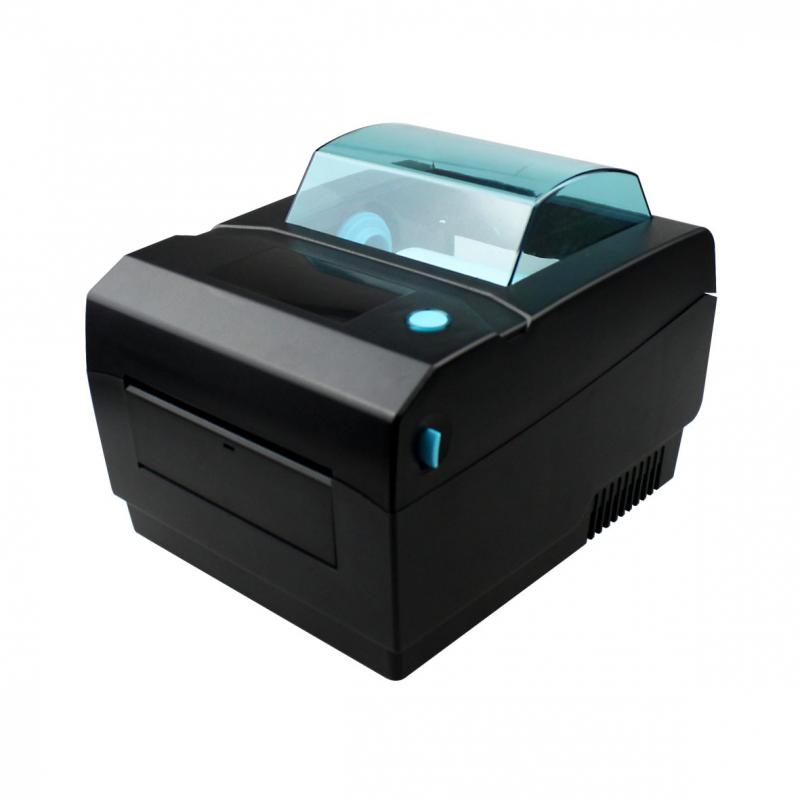

4" Direct Thermal Shipping Label Printer

Model No.

CSN-400

Printer Method

Thermal line printing

Paper Dimensions

Paper width:30-110mm

Paper thickness:80-180μm

Paper roll outer dia.:Max.110mm

Paper roll core dia.:25mm

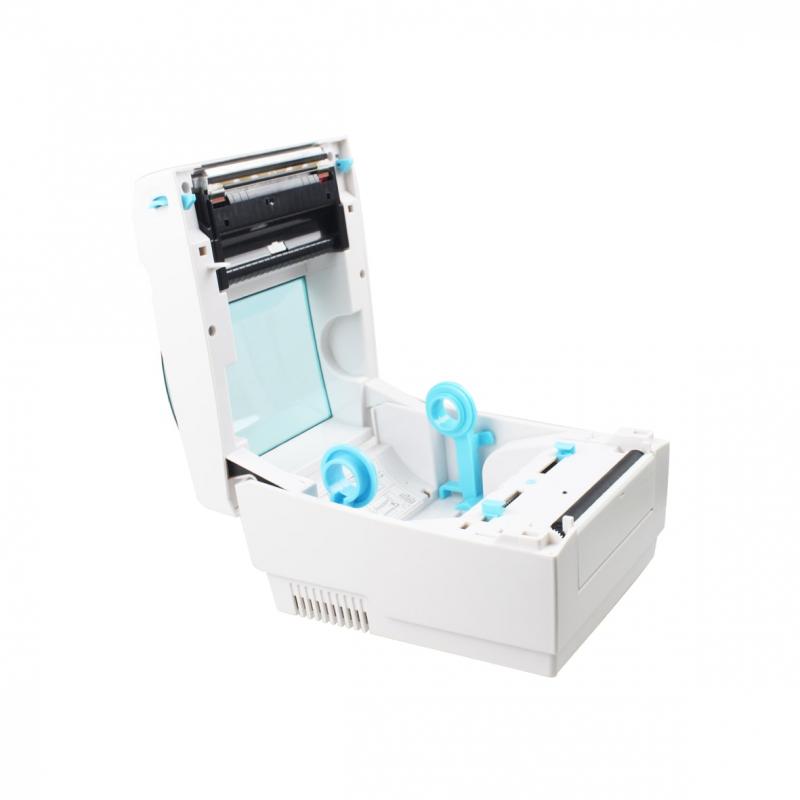

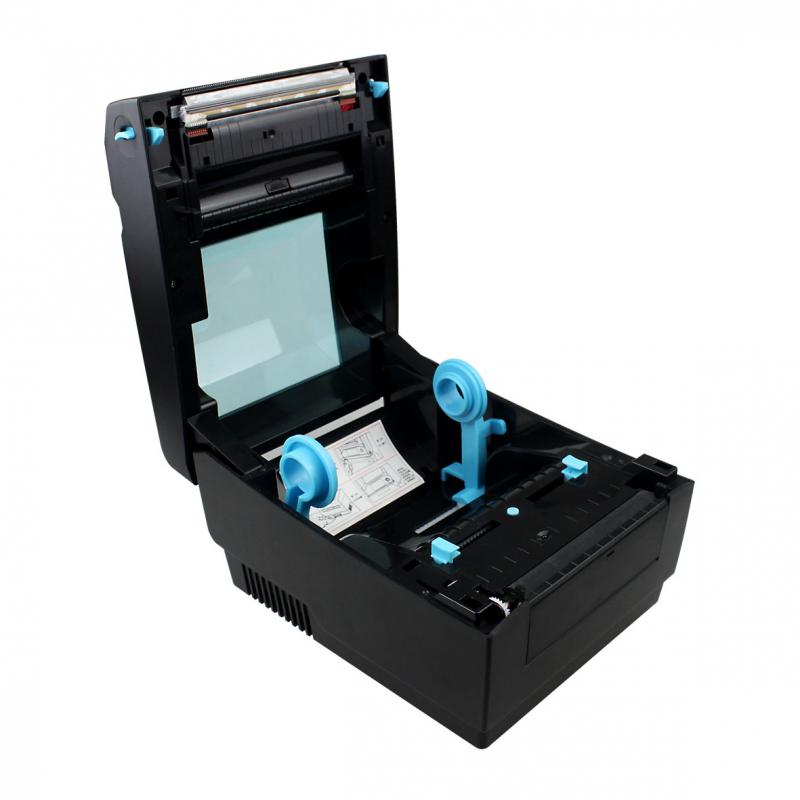

Paper Loading Structure

Spindle

Printing Width

Max. 108mm

Print Density

203dpi(8dots/mm)

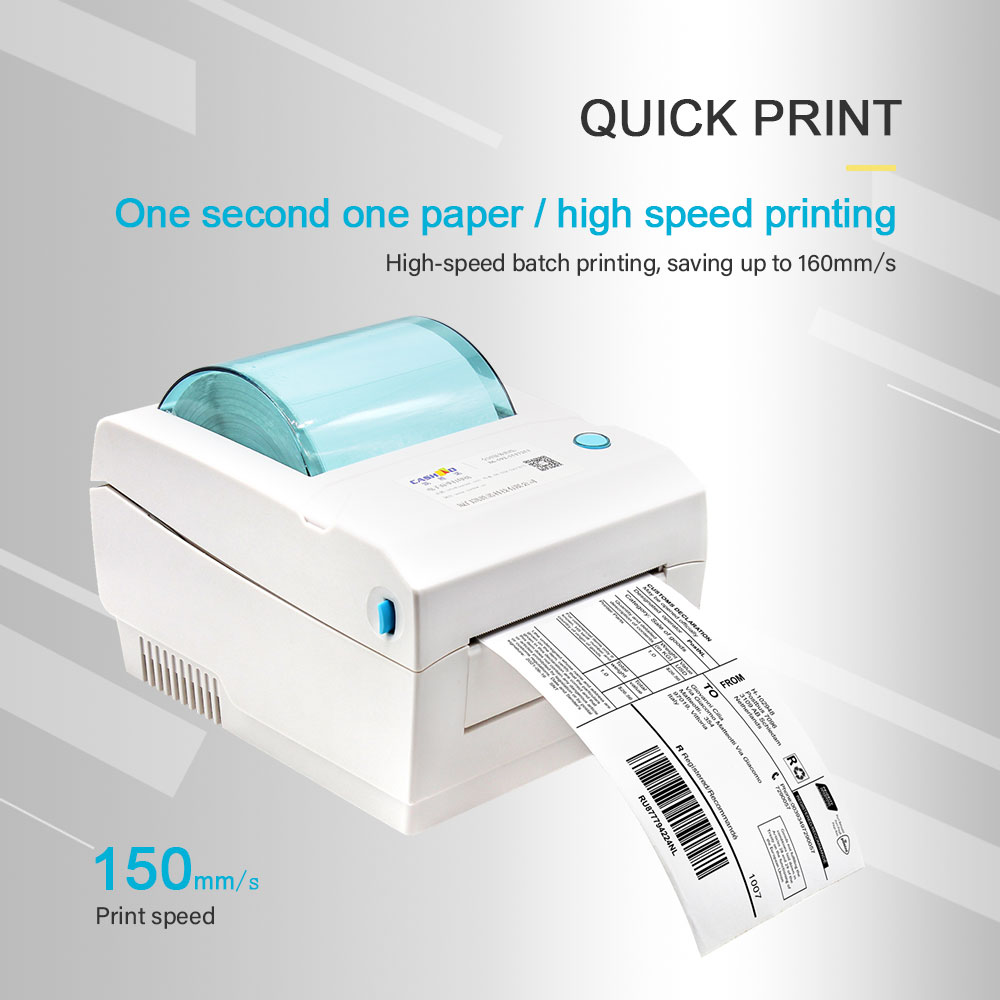

Print Speed

Max. 150mm/s

TPH Life/MCBF

100km

Character Set

Font A:12*24, Font B:9*17, GBK:24

Character Size

ASCII:9*17, 9*24, 16*18, 12*24

Character Per Line

Font A(12*24):48

Font B(9*17):64

GBK:24

Barcode

CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5, CPOST, MSI, MSIC, PLESSEY, ITF14, EAN14, QR CODE

Auto-Cutter

Tear off or Peel off

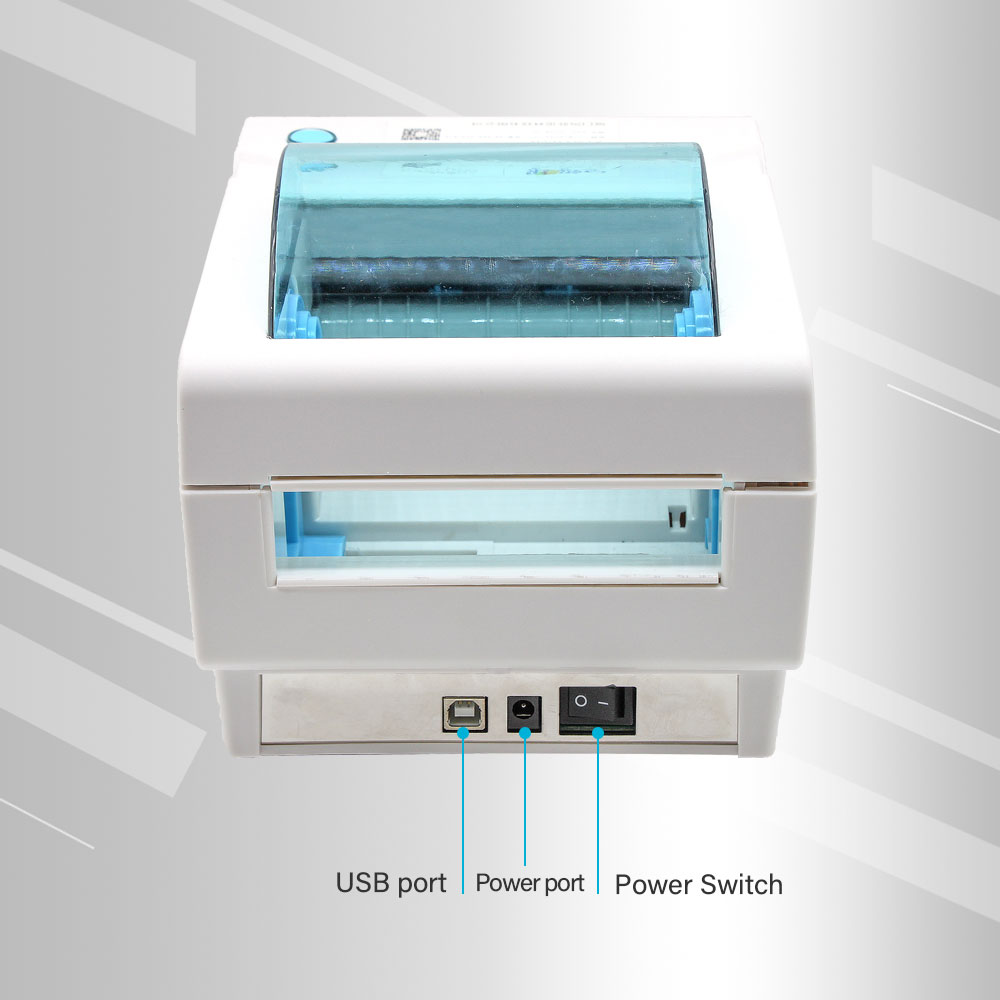

Interface(Standard)

USB

Power Supply

DC24V, 2A

Printing Command

Compatible with ESC/POS, TSPL, CPCL set

Overall Dimensions

180W*230D*180H mm

Weight

1.0KG

Temperature

Operating:5℃-40℃

Storage:-20℃-50℃

Humidity

Operating:10%RH-80%RH

Storage:10%-90%RH
