2D Scanning Platform

Model:

BS-X3

Code reading mode:

CMOS (Global Exposure).

Pixels:

640*480

Light source:

617nm red LED

Scan Mode:

Omni-induction trigger /manual/continuous

Minimum resolution:

0.127mm(5mil) @Code 39, PCS=90%

Usage environment:

0°C-50°C

Storage Temperature:

-20℃~+70℃

Storage humidity:

5%-95% non-condensing

Ambient lighting:

0~8,600Lux (fluorescent)0~100,000Lux(daylight)

Input voltage:

5VDC±10%

Operating current:

175mA typical

Depth of Field Angle:

30° V x 48° H (vertical)

Field of view:

48° (H) x 30° (V)

Interface support:

USB, USB-COM, RS-232 (optional).

Dimensions:

164mm×106mm×84mm

Product Weight:

348g (excluding packaging and accessories).

Gross weight:

523g

Cable Standards:

Straight line: 1 .8m

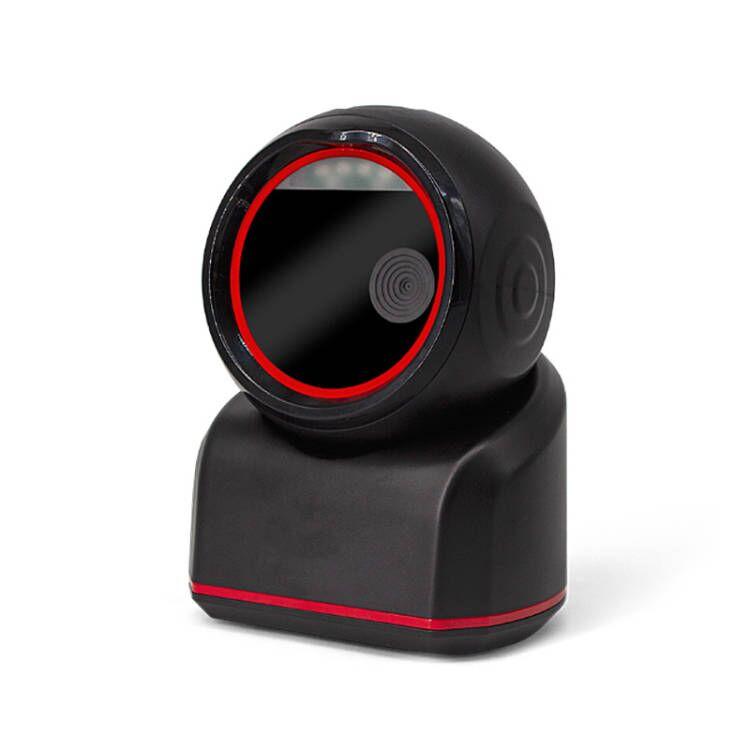

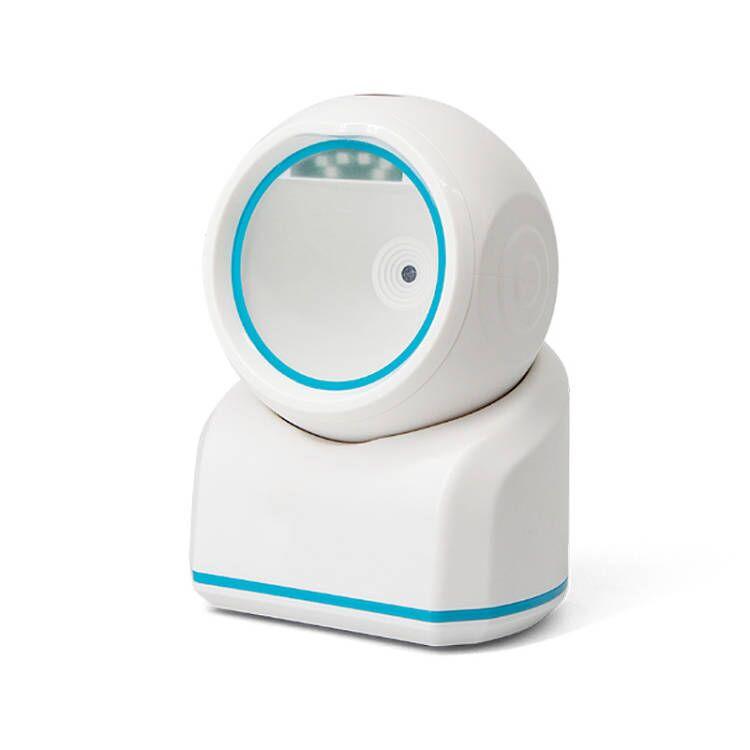

Color:

Black/White

Material:

ABS+PC

Sealing class:

IP54

Drop height:

1.5m

Decoding capability:

1D: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar,

MSI, RSS

2D: QR, Data Matrix (DM), PDF417, supports mobile phone screen reading
