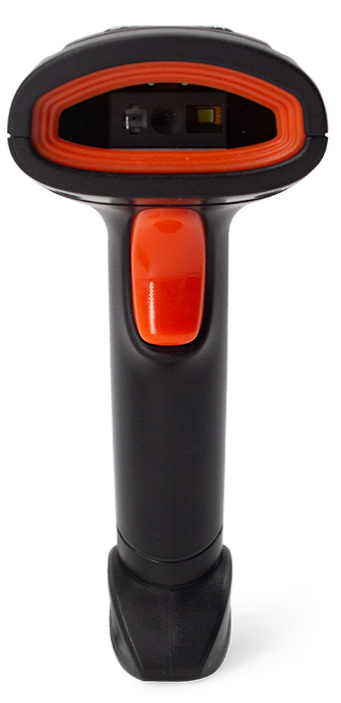

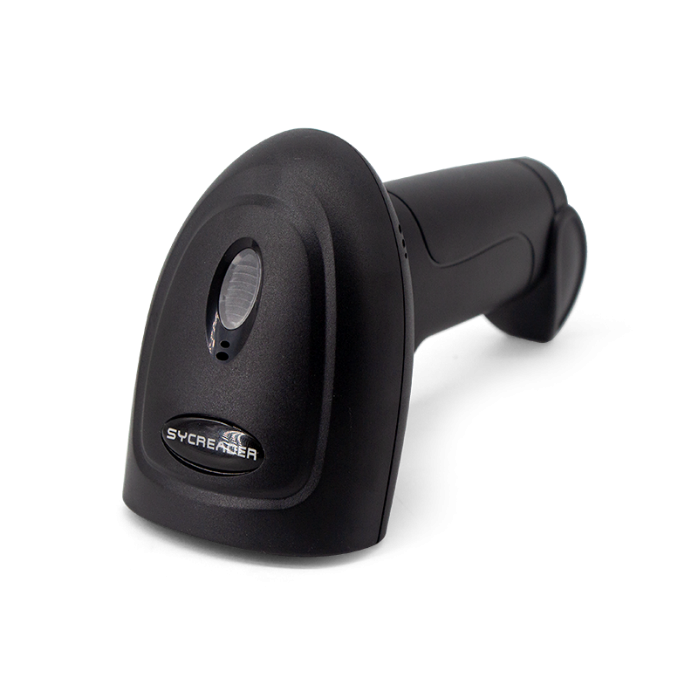

2D Handheld Barcode Scanner

Model

BS-U4

Power.

1.60 watts (working);0.40 watts (standby).

Current.

120 -200mAh (working);10-20 mAh (standby)5 plus/-10% VDC s 130-350 mA

Distinguishability

752 × 480 pixels

Scan angle

± 60 degrees, ± 40 degrees, ± 42 degrees (left, right, back, round).

The type of decoding

1d:
UPC-A, UPC-E1, UPC-E0, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39,
Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar (NW7), Code 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey,
UK/Plessey, UCC/EAN 128, China Post, China Finance, GS1 DataBar (formerly RSS) variants

2D:
PDF417, MicroPDF417, QR code, DataMatrix

How to prompt

Buzzer,LED

The system interface

RS-232 serial port;USB keyboard;USB imaginary serial port

How it was triggered

Manual.

Appearance size

Long × width× height: 160mm × 66mm × 90mm

Weight.

128g(without cable).

Cable standard

Straight line,1.65 meters

The type of interface

One-in-one line

Shell material

PC+ABS

Temperature

0°C ~ 50°C (working); -40°C ~ 60°C (storage)

Humidity

5% to 95%(no condensation).

How to set it up

Manual (scan to set barcodes in turn)

Resolution

3.5mil(high density series),1mil = 0.0254mm

Read depth of view

3.5mil:Code128(9 characters).

15mm—35mm

5mil:Code39(20 characters).

33mm—77mm

13mil:UPC (12 characters).

17mm—150mm

20mil:Code39(5 characters).

55mm—195mm

6.7mil:PDF417(20 characters).

25mm—90mm

10mil:DM(20 characters).

15mm—115mm

20mil:QR(20 characters).

9mm—175mm

Level of security

EMC Electromagnetic Compatibility:EN55022,EN55024
Electrical safety:EN60950-1
Waterproof and dust-proof seal rating:IP54
Seismic capacity:5 or more times 1.5 meters of height fell to the cement floor
