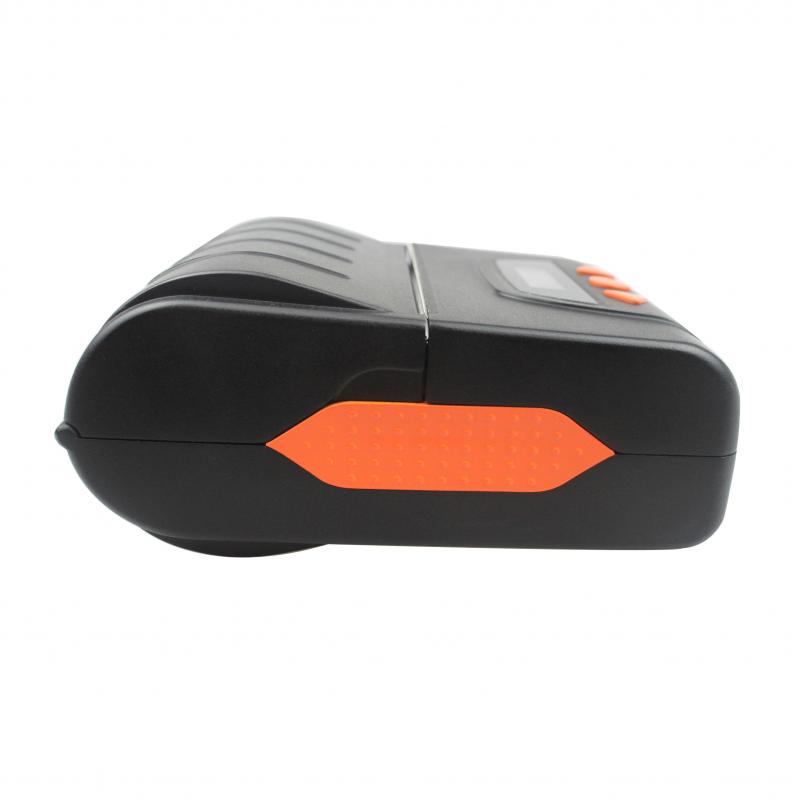

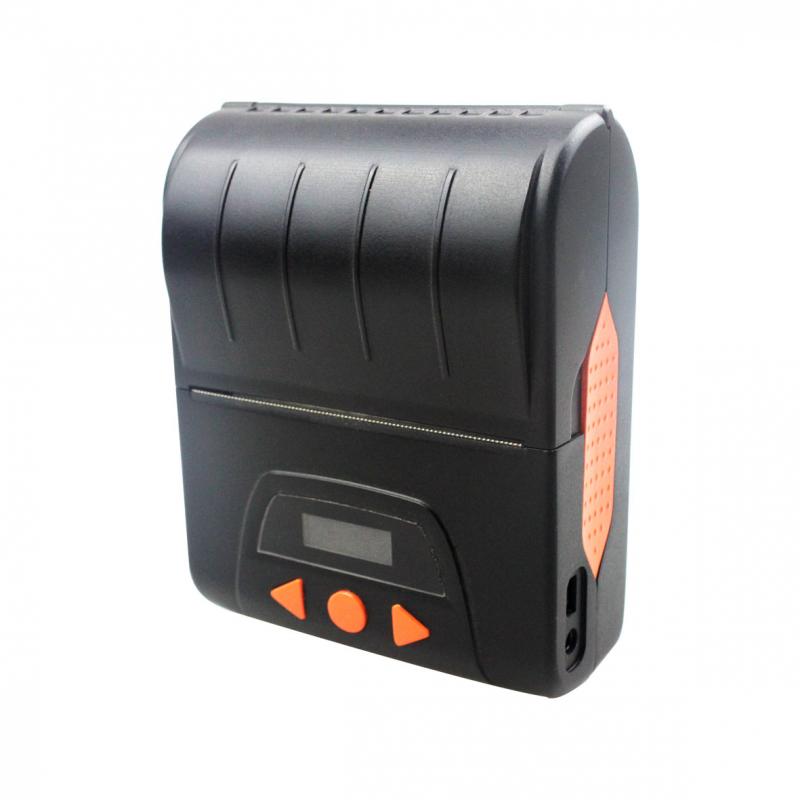

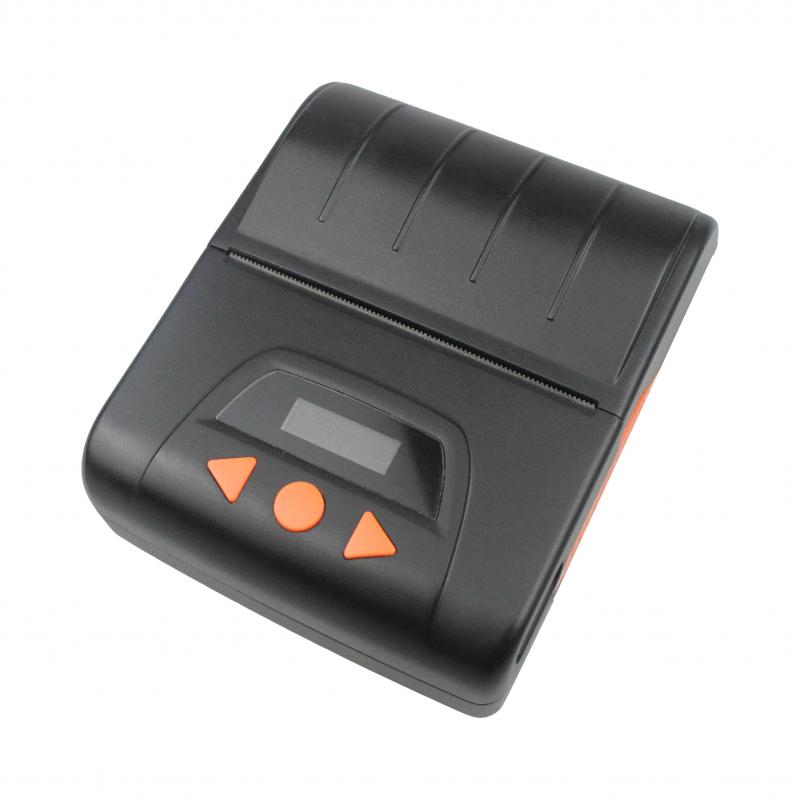

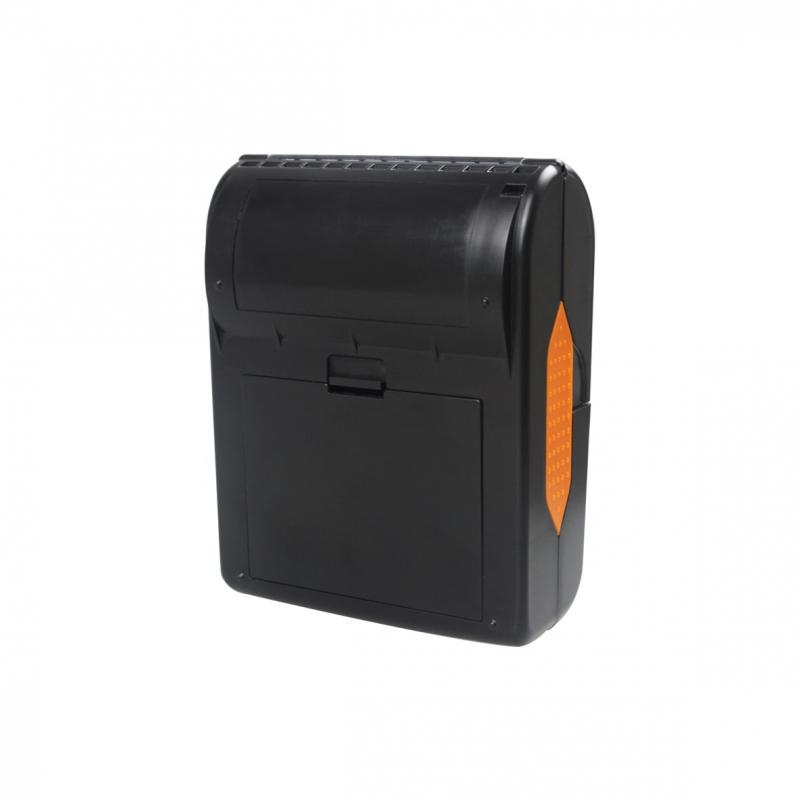

3'' Mobile Thermal Printer

Model

KMP-III

Print

Printing Method

Thermal line printing

Printing Speed

Max 90mm/s

Resolution

203dpi(8dots/mm)

Effective printing width

72mm

Character

Character set

ASCII，GBK，BIG5

Fonts

ASCII：(9*17,9*24，16*18,12*24)

GBK：（24*24）

Characters per line

Font A（12*24）：32

Font B（9*17）：42
GBK：16

Memory

SRAM

20k bytes

Flash

128k bytes

Paper Spec.

Paper Type

Thermal Paper

Paper Width

80±0.5mm

Paper diameter

50mm(Max)

Paper Thickness

0.06-0.09mm

Reliability

TPH

＞50km(12.5% print ratio)

Sensor

Paper end

Barcode

1D

UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93

2D

QR code

Command

Compatible with ESC/POS command set

Driver/SDK

Windows Driver,Linux Driver,OPOS Driver

Interface

Wire

Type-C USB

Wireless

Bluetooth V2.0/V4.0

Power

2000mAh  7.4V

Recharge adapter

DC 12V /1A or 5V/ 1A USB port charging

Environment

Temperature

Operating:0°C~50°C

Storage:-20°C ~ 60°C

Charging:5°C~40°C

Humidity

Operating:20%RH~85%RH

Storage:5%~90%RH

Charging:20%~85RH

Dimensions

Weight

360g (Including battery)

Dimension(WxLxH)

99*127*55.5mm

Color

Black

Accessories

Standard accessories

Li-ion battery,AC adapter, USB cable,paper roll,

Optional accessories

CD/Car charger/Protective Case,user manual
